Williamsburg hotel steel detailing
BROOKLYN, NY

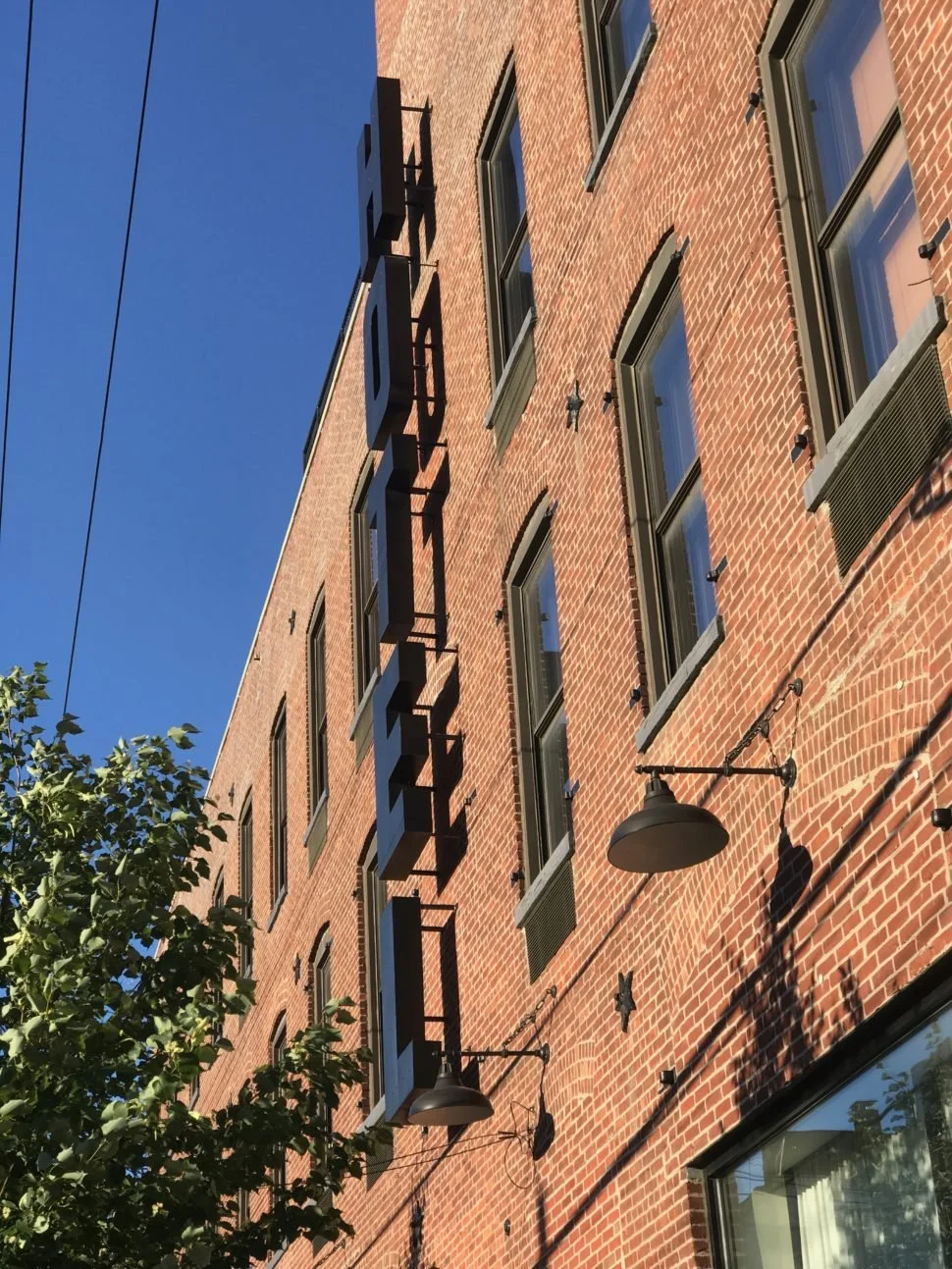

Madsen provided structural steel detailing for this hotel in Williamsburg, Brooklyn. Design and miscellaneous steel detailing was also provided for all the building stairs, ramps, etc.
The design includes a four story plus cellar and roof structure. A pool with an elevated pool deck was installed on the roof.
The structural system consists of composite concrete on metal deck floors supported by steel beams and columns. The total weight of the structural steel was approximately 270 tons.
