Kings Highway Plaza Steel Detailing
kings highway plaza steel detailing
BROOKLYN, NY

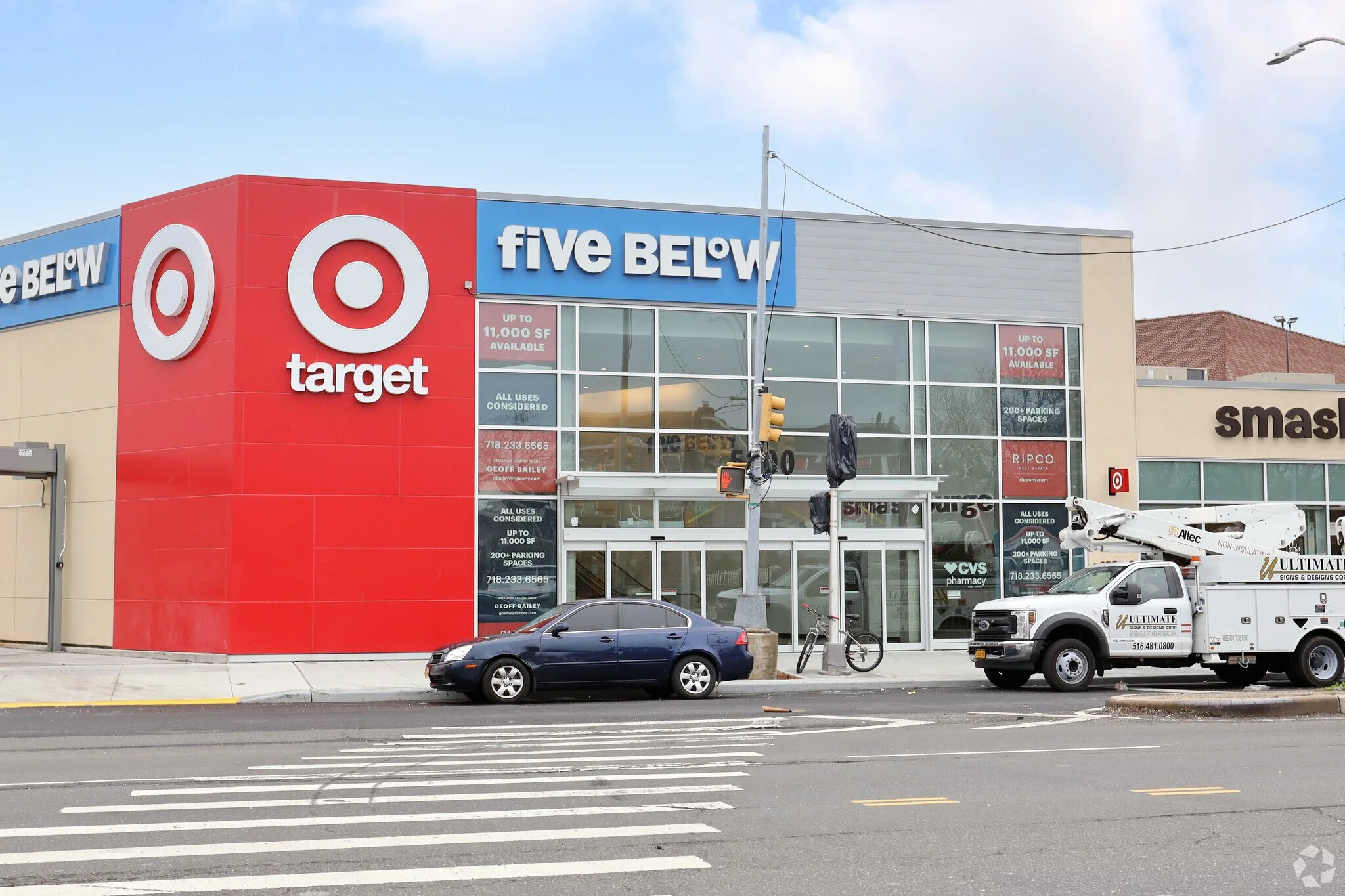

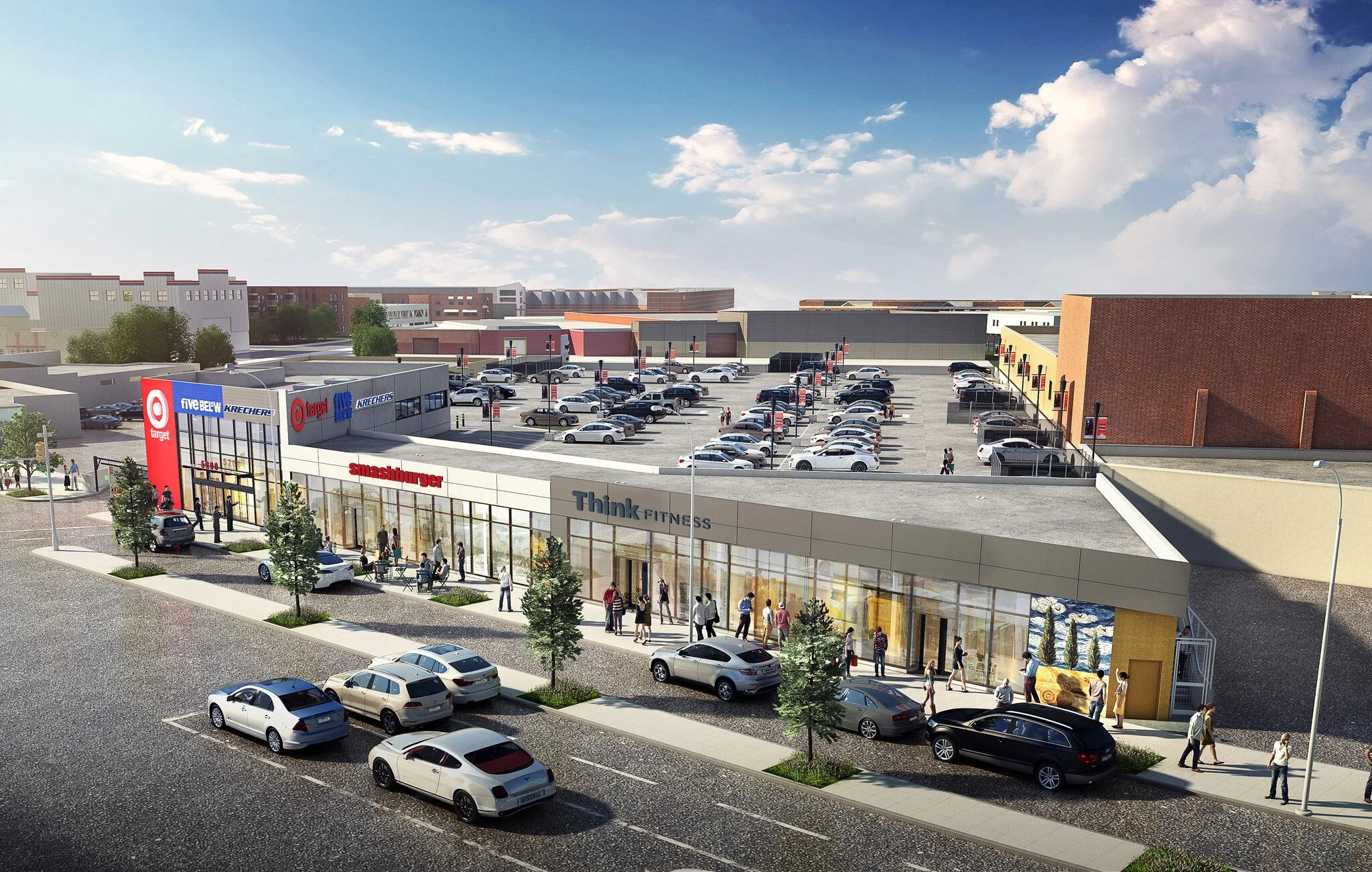

Madsen provided structural steel detailing and connection design services, as well as miscellaneous steel calculations for this multi-level retail project in Brooklyn. The design includes a full lot cellar level, an outdoor parking deck on the roof, a main entry plaza and an above ground retail area plus roofs and bulkhead.
The structural system consists of composite concrete on metal deck floors supported by steel beams and columns. The building has a gross area of approximately 100,000 square feet and the total weight of the structural steel is approximately 500 tons.
